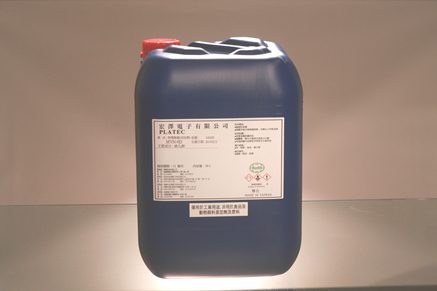

PLATEC Electroless Nickel MVN-9 / M / A / B / C / D

Product features：
Excellent starting ability and good plating solution stability.
Applicable to all kinds of solder mask.
Adding machine with the automatic analysis of nickel, have stable solution and labor-saving.
Phosphorus content: 8~10 ％.

Reliability Tests：

ITEM

REFERENCE DOCUMENT

RESULT

1

SALT SPRAY TEST

MIL-STD-883G Method 1009.8 specification.

Duration of test：96hours

PASS

2

TEMPERATURE CYCLING TEST

Temperature range：-65°C~ +125°C

Number of cycles：100cycles

PASS

3

TEMPERATURE AND HUMIDITY STORAGE TEST

Temperature：65°C

Humidity：95% RH

Test Time：168hours

PASS

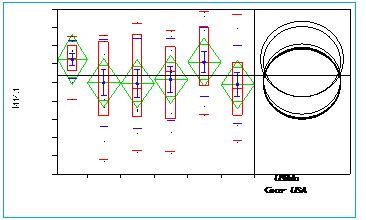

BGA BALL PULL TEST
