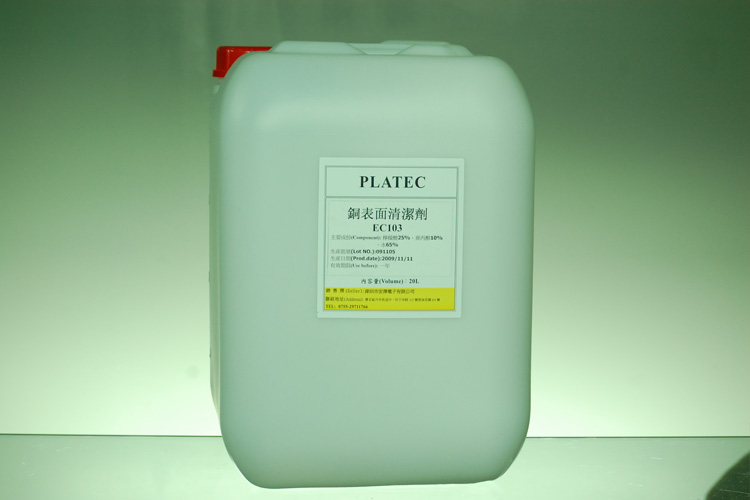

PLATEC Acid Cleaner EC-103


Introduction:
EC-103 is a special acid cleaner aqueous solution designed to compatible with PCB surface cleaning,such as to remove off grease、oxide and scum on the surface of PCB, Ensure the post-processing based on cleanly copper surface without scum. The acid cleaner can be used with diping and spraying equipment.

Features:

※ Not containing any chelate,the wastewater treatment is easy
※ Powerful cleaning can deep cleanse dirt from the copper surface
※ Apply to dip or spray mode

Equipment specifications:

※ Tanks: Polypropylene（PP），PE，PVC etc
※ Heater: Teflon ,quartz，titanium ，stainless steel 316
※ Exhaust: recommend
※ Filtration: recommend use filter core by 5～10μm .


Operational Parameters:

1) EC-103:80～120ml/L，The others of water.
2) Parameters



Conc

Time

 Temp

Dip

80~120ml/L

30~60sec

 35~45℃

Spray

80~120ml/L

20~60sec

 35~45℃
