CN-851 is a nickel-phosphorus alloy chemical plating solution, which Rev-Plating capability is good and the solution stability is excellent, The plating layer phosphorus contain is stable, The plating layer is good compactness, excellent corrosion resistance, low internal stress and good appearance;With Auto-add device and prevent precipitation device, can be certain of the stable deposits velocity and uniform plating layer, and suitable for continuous operation. Satisfy customer in soldering, Bonding and low surface resistance performance requirements etc.

1. Make Up:

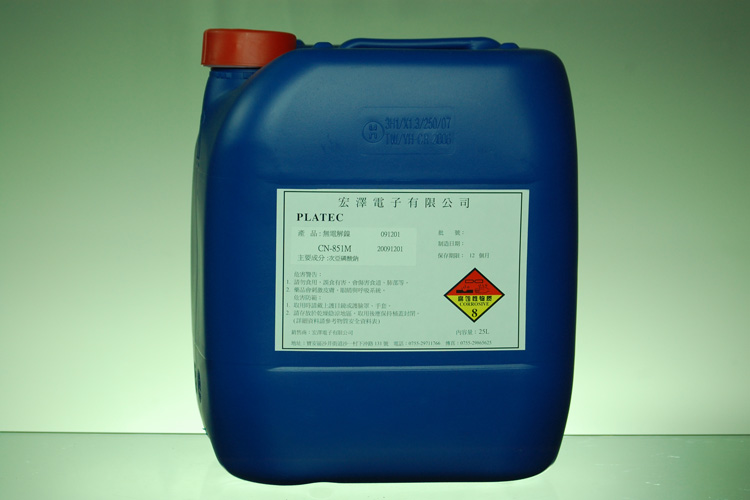

CN-851M: 150 ml / L

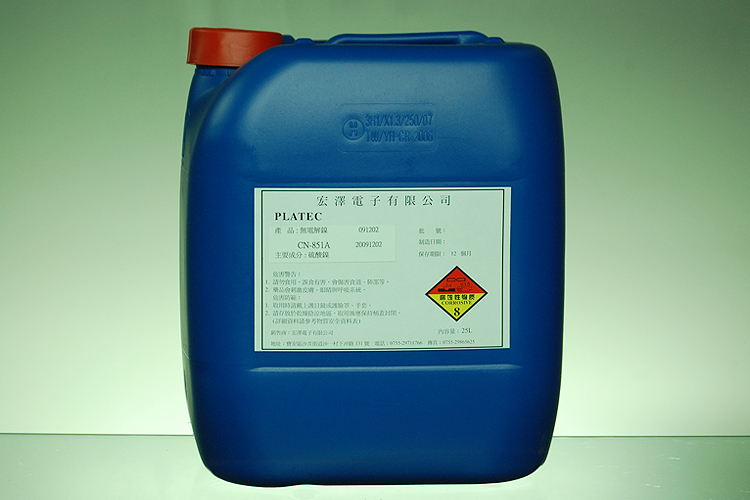

CN-851A: 50 ml / L（46—50mL/L）

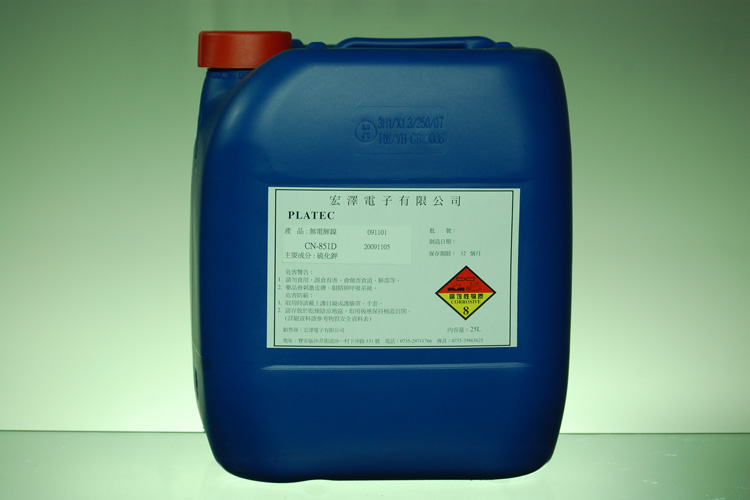

CN-851D: 4 ml / L
explaination: Please use DI.water when make up

2. Procedure:
Temp：82 ℃ (80 ~ 84 ℃);
Time: 20min (10 ~ 30 min);
Tanks material: stainless steel 316;
Heater: quartz or stainless steel with Teflon coating recommend use indirect heating in water-bath
Filtration: 5~10 um PP filter core, The overflow filtering method 6~12 turn-over/hr
Vibration: Air cylinder (up and down vibration )
Rinse: 3 times by DI. water
Other: Auto-add device and prevent precipitation device

The deposits velocity: 6~10 µ″/ min

4.The plating layer phosphorus contain: 6% ~ 10%

5. Solution Maintenance:
1) regular addition: （A:B:C:D= 1：1：1：0.4）
2) analysis and adjust: according to “CP-851 Analysis specifications”
3) Update: 4~5 M.T.O.
