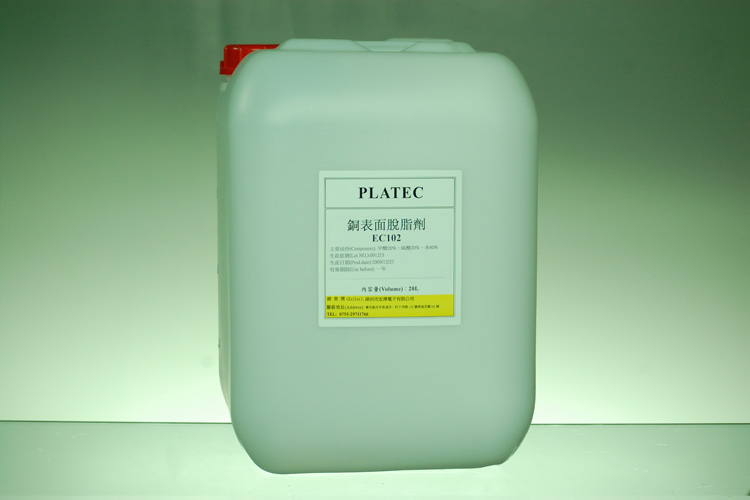

PLATEC Acid Cleaner EC-102


Introduction:
EC-102 acid cleaner is designed to remove off grease、oxide and scum on the copper surface .Especially compatible with OSP be used apply to cleaning selective Ni/Au PCB .EC-102 is an acid cleaner aqueous solution. Do not contain Hydrochloric acid. Powerful cleaning but no damage copper surface .Apply to clean on PCB post-processing copper surface .

Features:

※ EC-102 is an acid cleaner aqueous solution. Not containing any chelate,the wastewater treatment is easy.
※ Not containing Hydrochloric acid .Powerful cleaning but not damage copper surface.
※ Apply to clean on PCB post-processing copper surface .

Equipment specifications:

※ Tanks：Polypropylene（PP），PE，PVC etc.
※ Heater:：Teflon ,quartz，titanium ，stainless steel 316
※ Exhaust:：recommend
※ Filtration:：recommend use filter core by 5～10μm.


Operational Parameters:

Condition

Range

spec

EC-102 ( ml/L)

8 – 12 %

10 %

Temp

35 – 45 ℃

40 ℃

Dip Time

30-60 sec

45 sec

Work load

45m2/L
