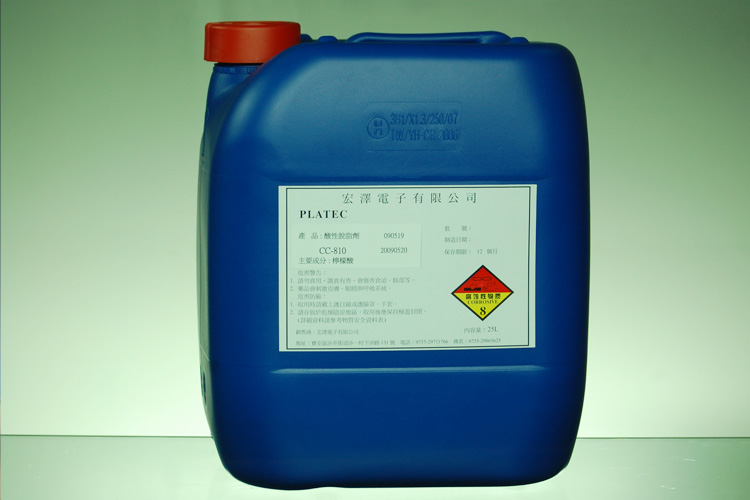

CC-810 acid Cleaner is designed to HDI board development of citric acid type of products , using special interface surfactant, washing and cleaning power of good, no damage soldermask and dry film on PCB, Powerful clean to surface oxidation of copper, copper surface and line is cleaning and activation.

1、Make Up : CC-810: 100 mL/L(80～120 mL/L)

2. Procedure :
Temp: 45 ℃ (40～50 ℃)
Time: 5min (4～6 min)
Tanks material: PVC or PP
Heater: quartz.titanium .stainless steel 316
Filtration: 5~10μm PP filter core, 3~4 turn-over/hr .
Churning: Circulation pump
Vibration: Air cylinder
Rinse: twice City water
Other: leave out

3. Solution Maintenance :
1)regular addition: 20mL/m2
2)analysis and adjust: according to “CC-810 Analysis specifications”
3)Update: 2 M.T.O.or copper ions content above 350ppm
